Our Crusher 14 wing is our biggest and highest down-force single element wing. It can be made any width up to 84" it was designed with dual-purpose cars in mind. It works exceptionally well at low speeds and high angles of attack for autocross events and can be dialed back to work well on road courses. The air even stays attached at 18* and above, which impressed the staff at the ARC wind tunnel.

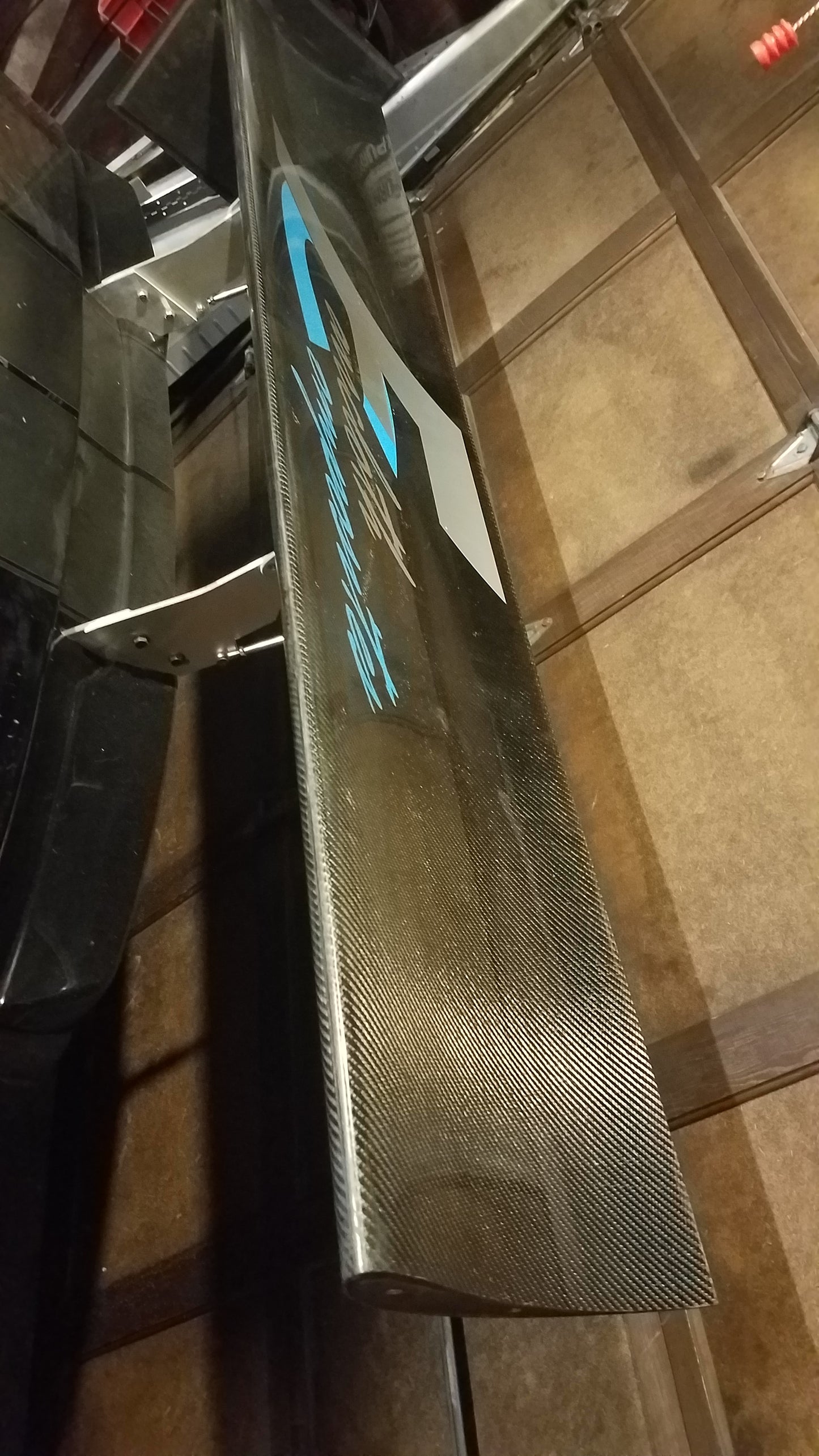

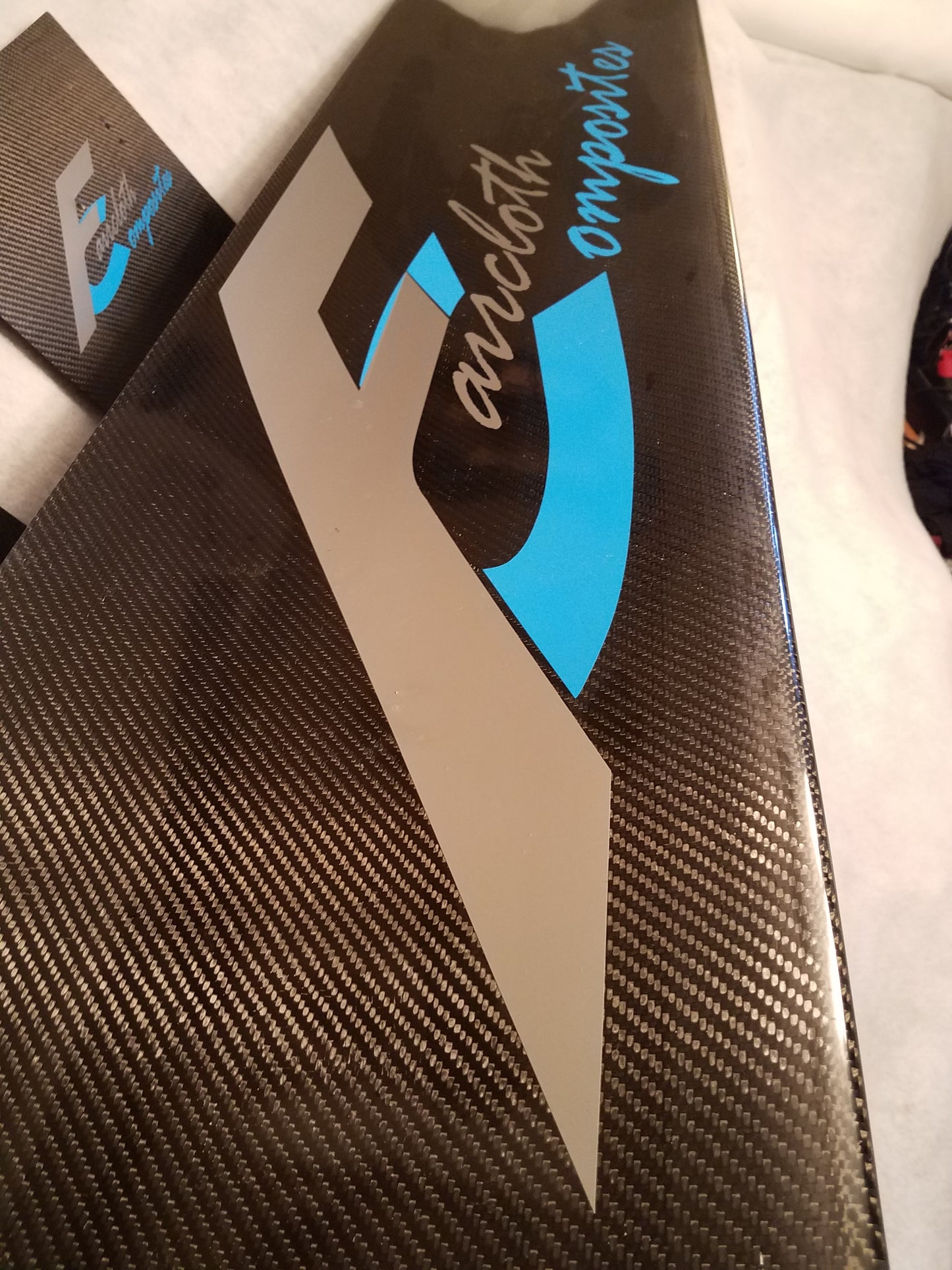

Pictured is a 78" bottom mount with large endplates.
Made with 100% carbon fiber.
Fully infused intermediate modulus carbon fiber @ 60%/40% fiber to resin content at 1/2 the cost of prepreg with all the stiffness and strength of a 100% carbon fiber wing, including mounts and uprights.
Spacing on the mounts is fully customizable.
The mounts pictured are spaced @26.25" so the uprights fit nicely between the tail lights of a C5 and C6 Corvette.

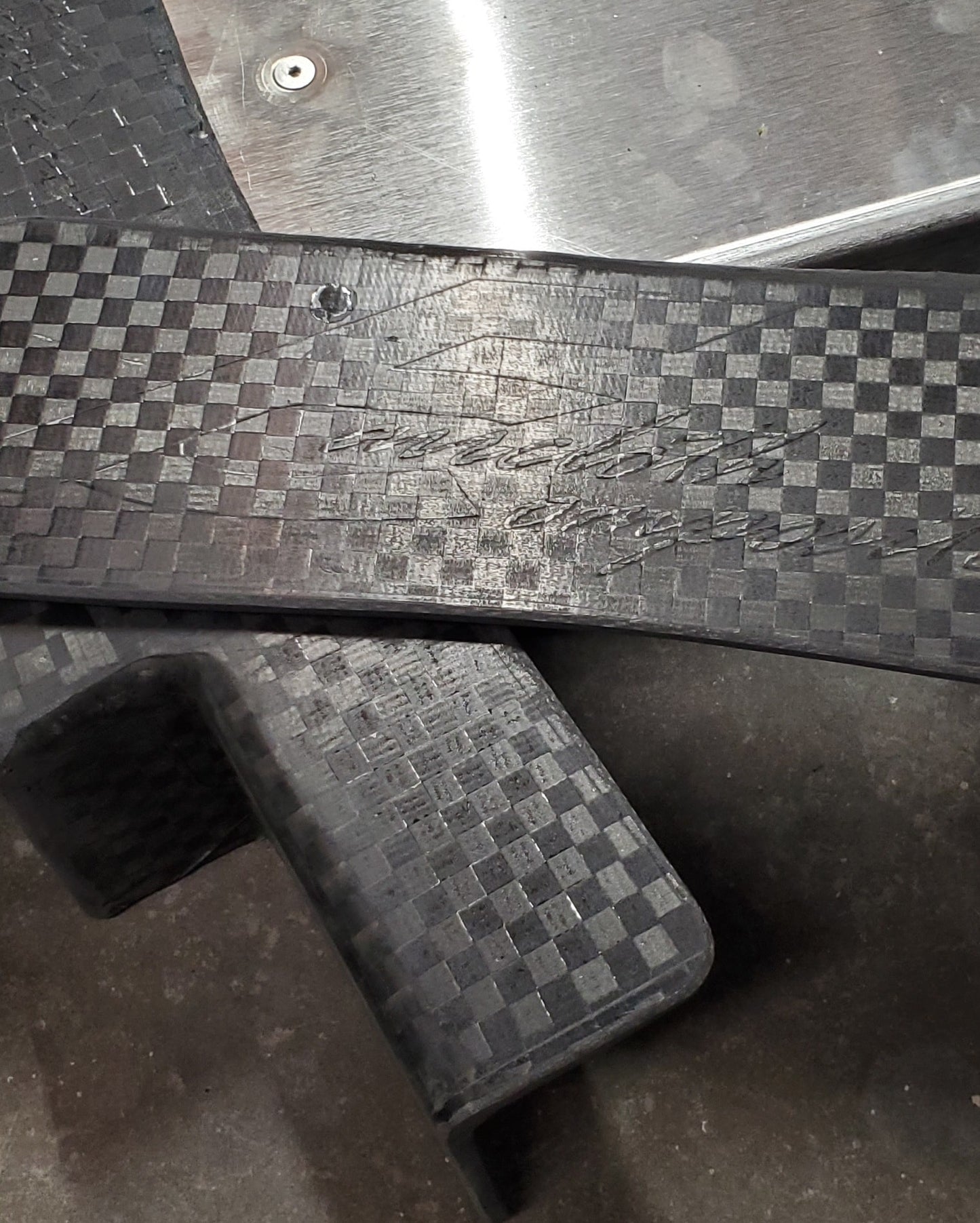

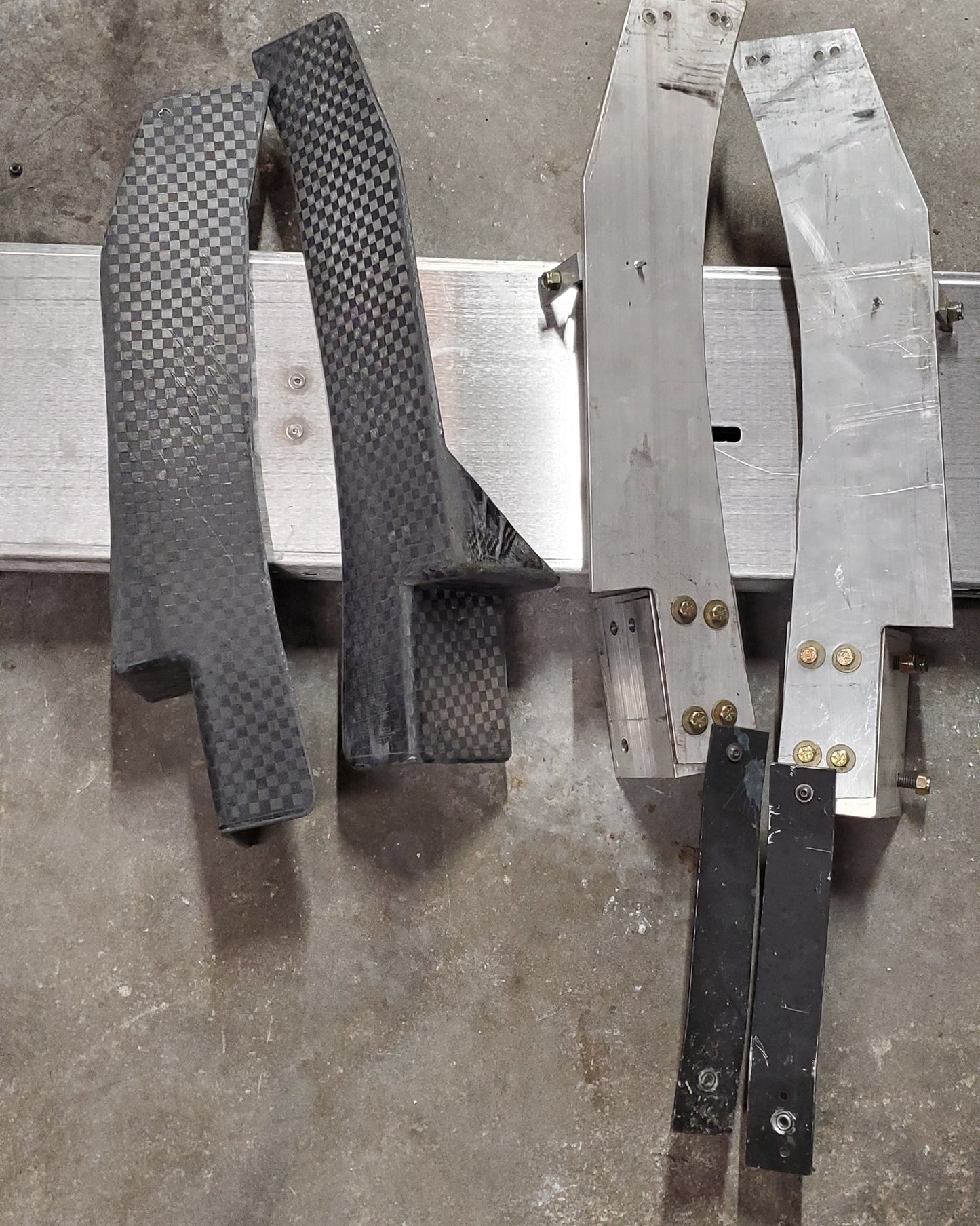

The uprights are made from full carbon fiber and bolt directly to the bumper beam for a structural mount. The 2 part design allows overall height changes to be made without having to pull the bumper cover off every time.

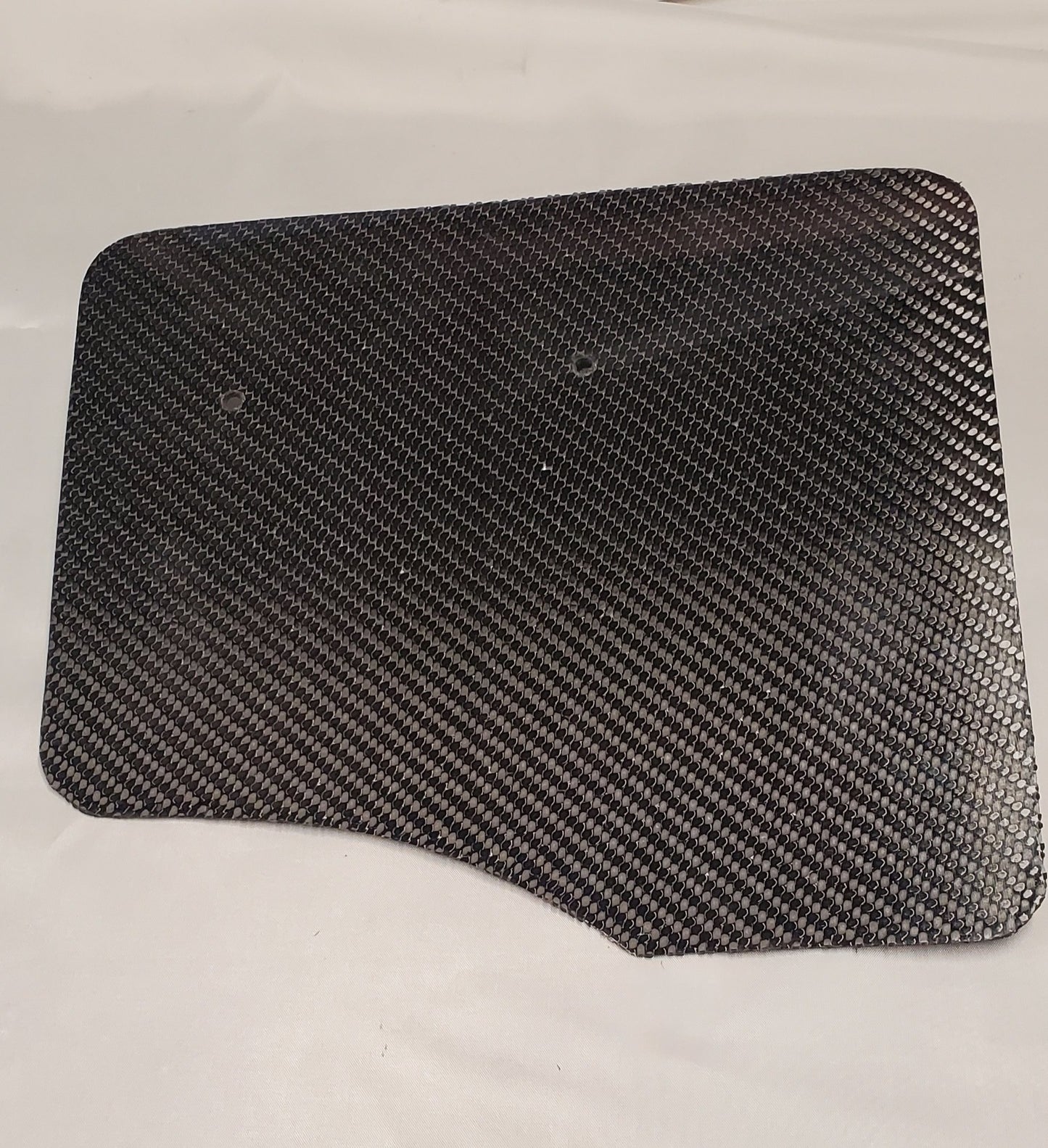

End plates and uprights included.
Also available without uprights upon request
Clear coat is recommended for carbon fiber parts exposed to uv and water.
