The FC12 wing is our 12" chord single element wing. It can be made any width up to 80" Mounts can also be customized to fit your application, just ask.
All products are made to order, please contact us for current lead times. Credit card processing fees will not be refunded because of cancelation due to lead times.

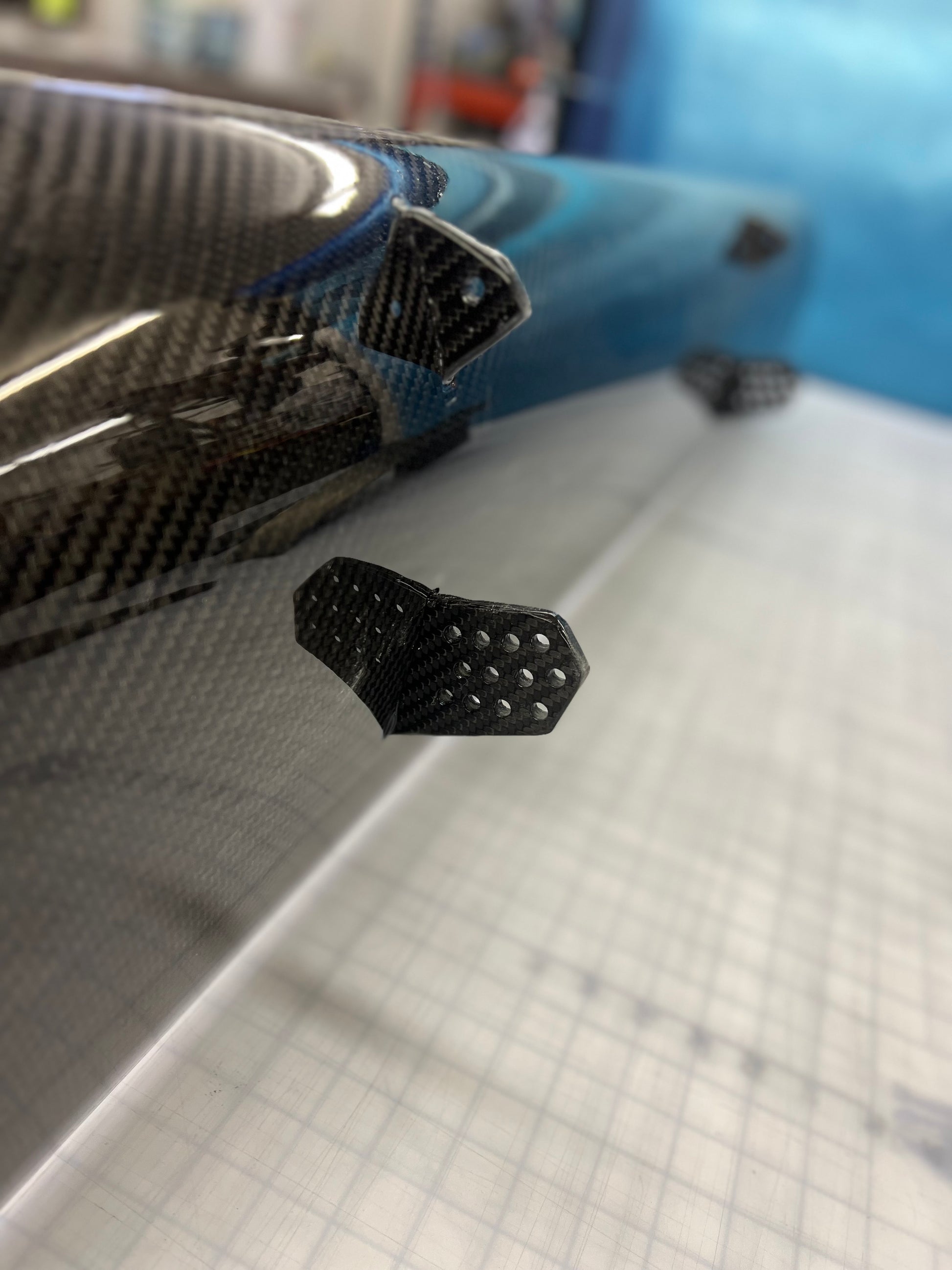

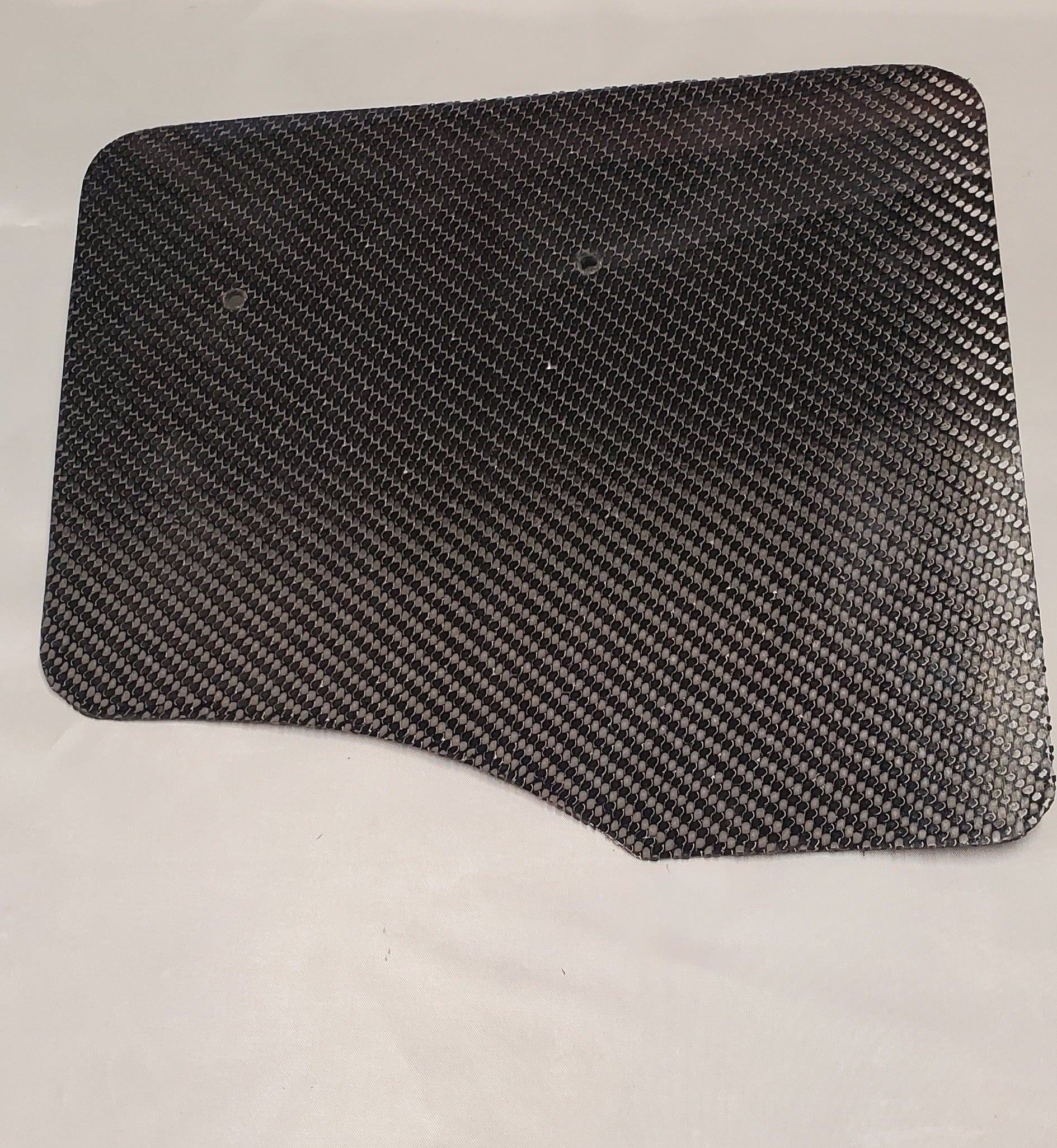

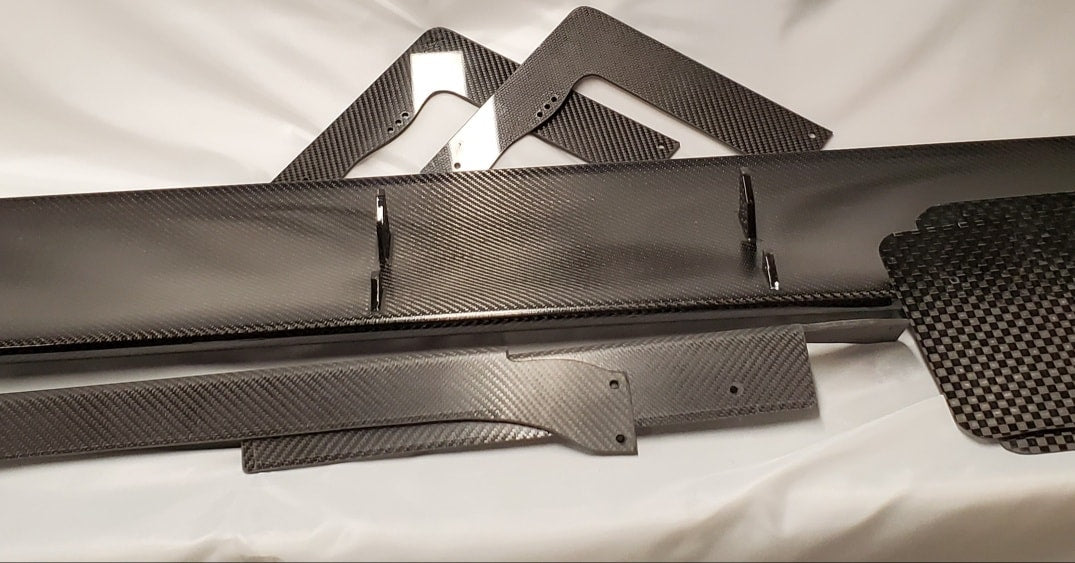

Full carbon mounts, 12”x12” endplates and full carbon uprights are included as standard equipment.

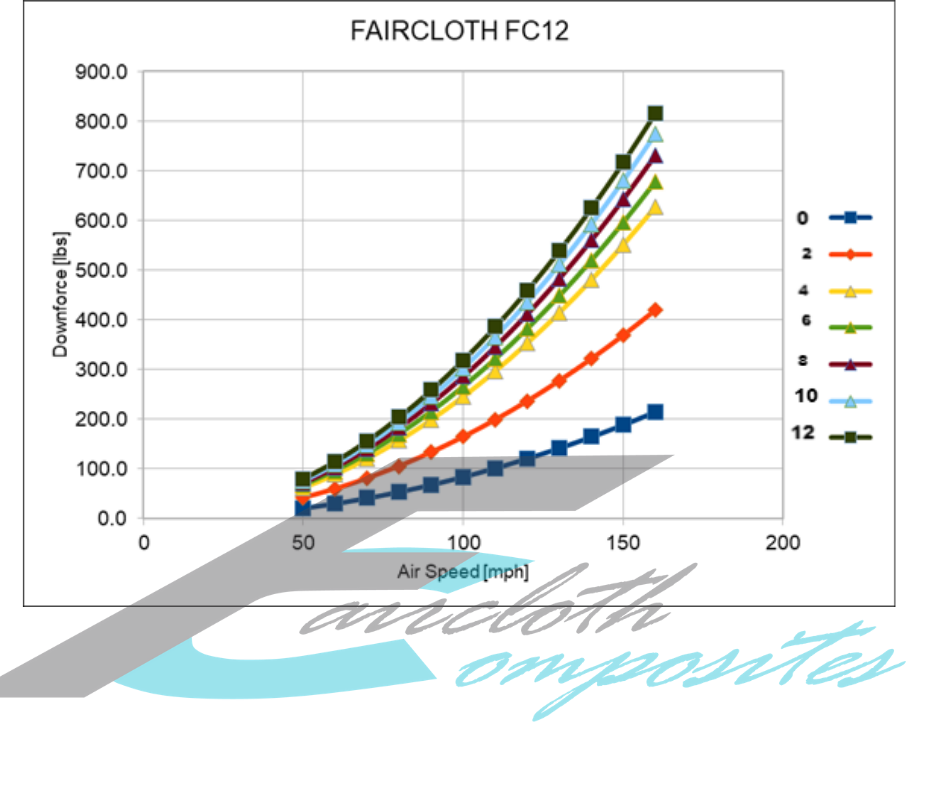

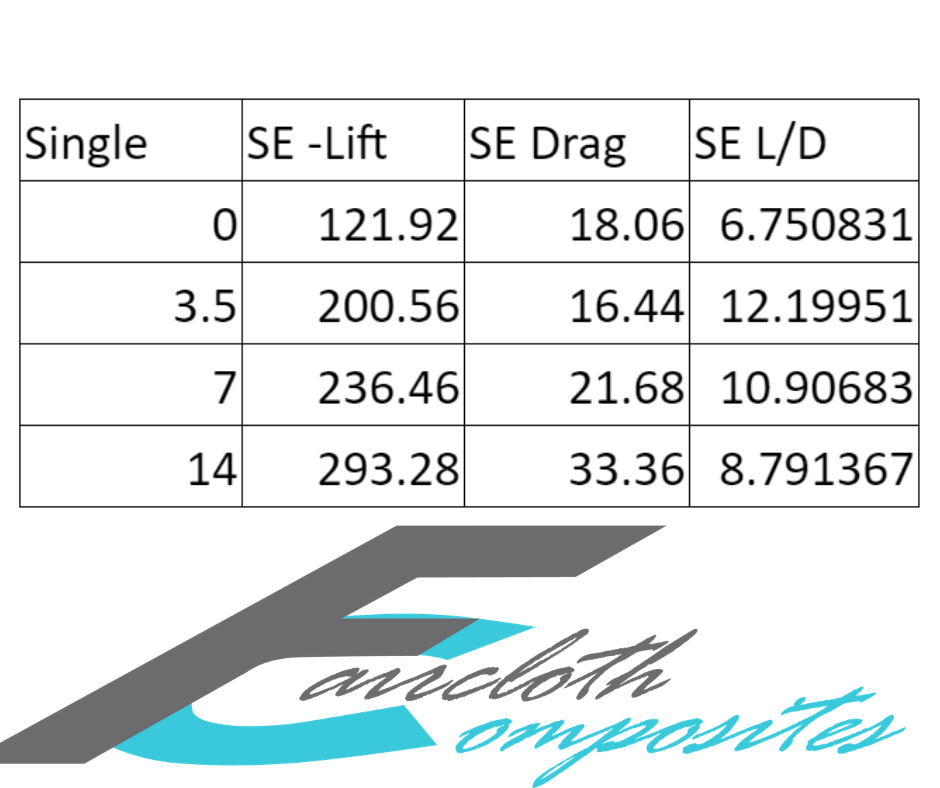

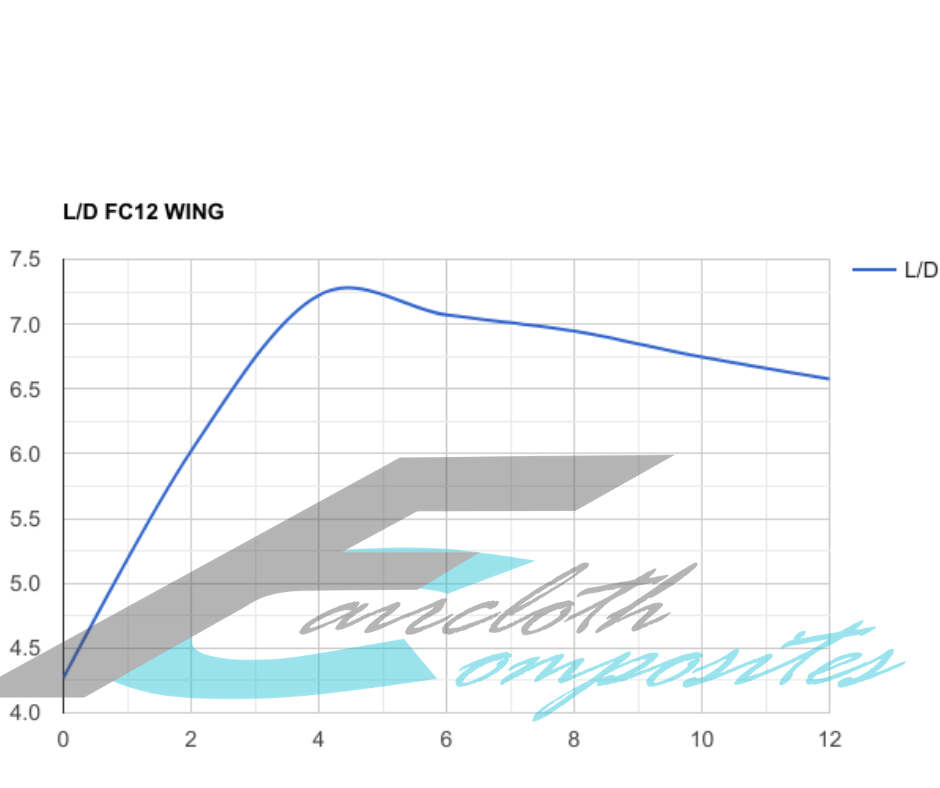

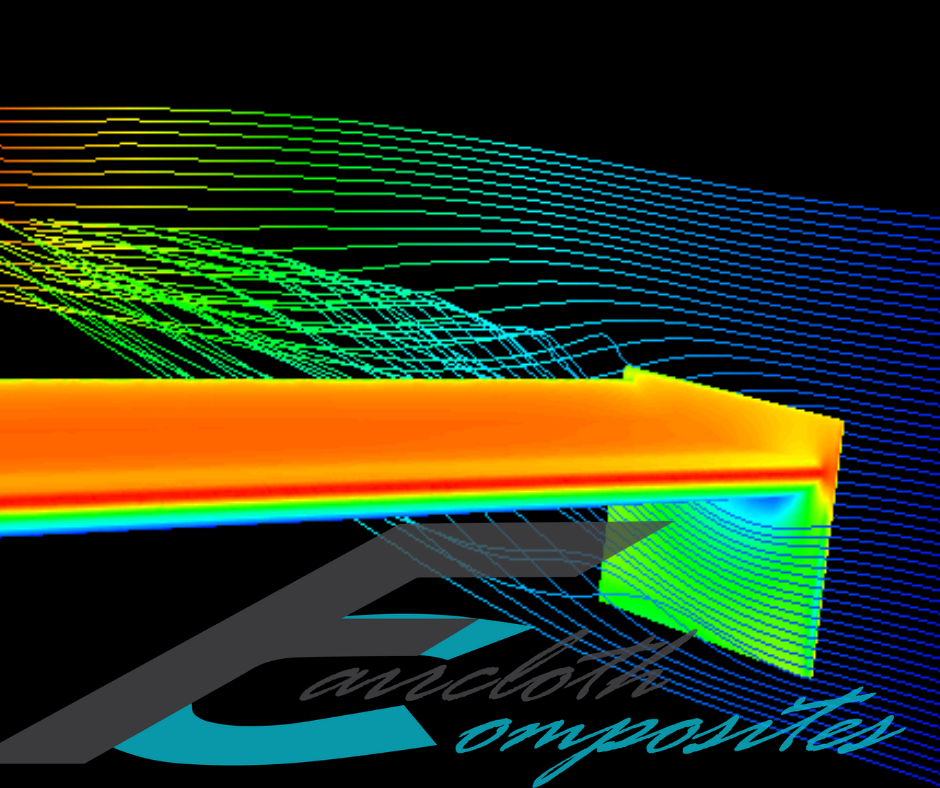

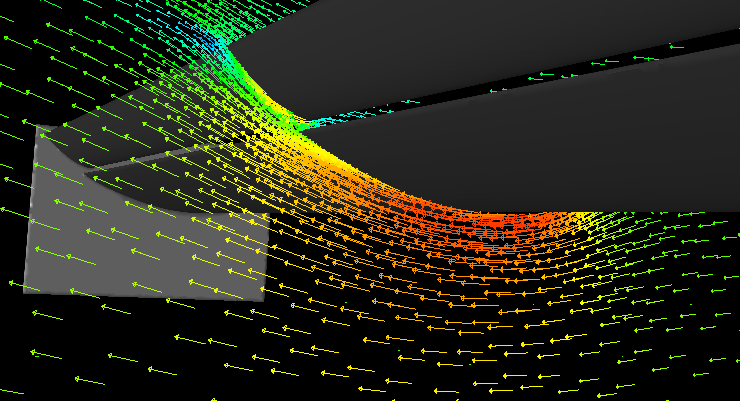

This profile was designed with efficiency in mind and has a L/D ratio of 7.3 verified in the wind tunnel. It works exceptionally well at low speeds and high angles of attack for autocross events as well as on road courses where average speeds are 100 mph+.
Made with 100% carbon fiber on CNC molds that ensure a precise fit, unmatched strength and stiffness as well as being extremely lightweight. You don't want to add weight to your car especially up high like a wing.
All of our wings are made with epoxy infused intermediate modulus carbon fiber @ 60%/40% (dry) fiber to resin content at 1/2 the cost of prepreg with all the stiffness and strength of a 100% carbon fiber wing, including mounts and uprights. No cheap Poly gel coat to peel and chip up.

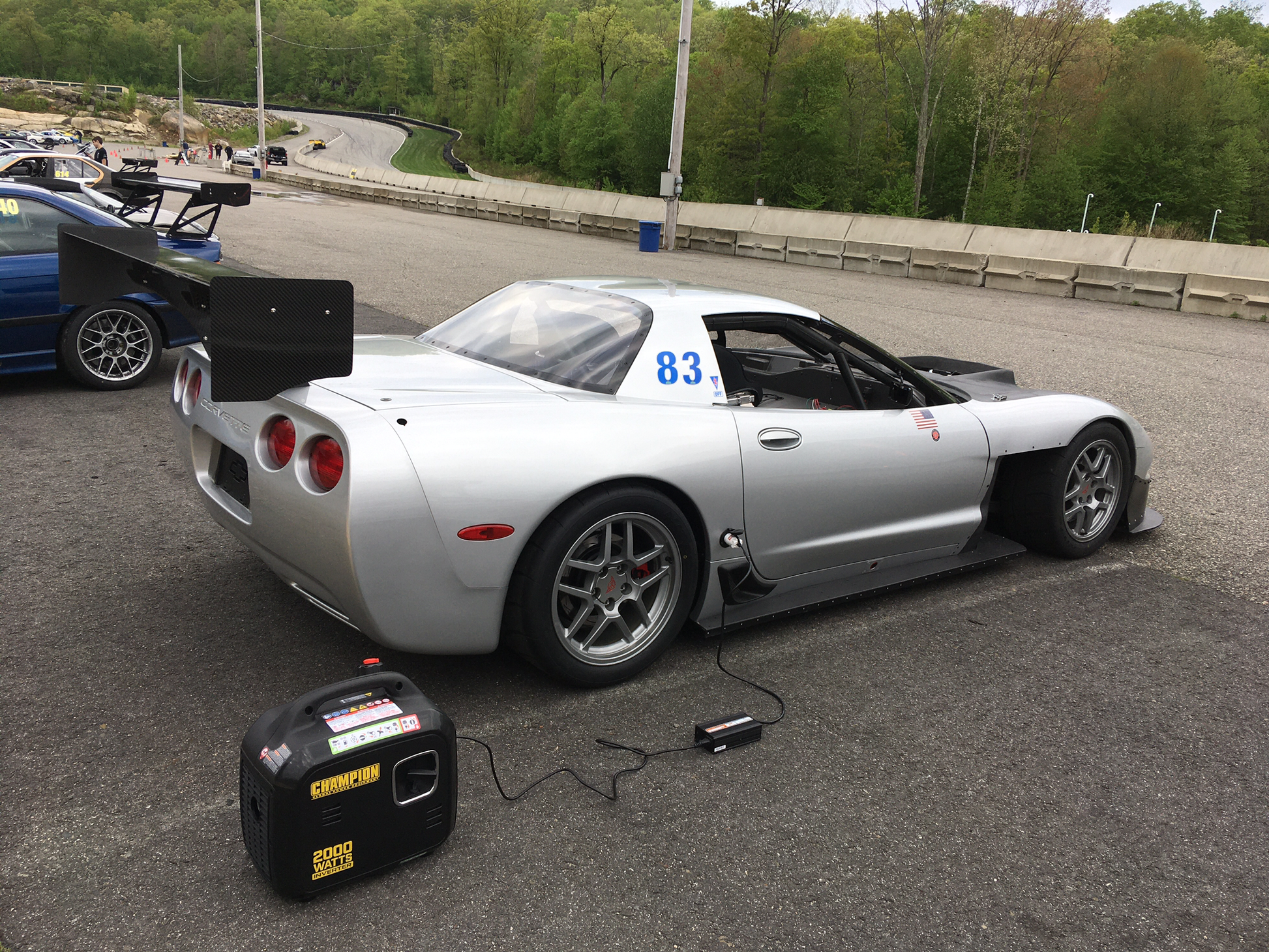

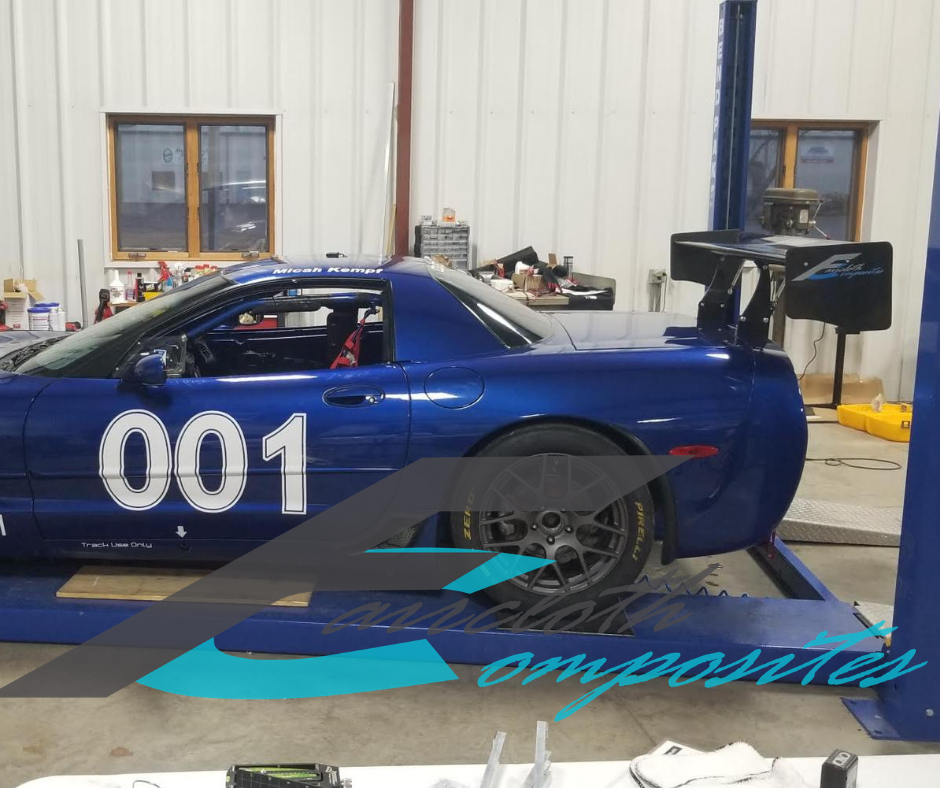

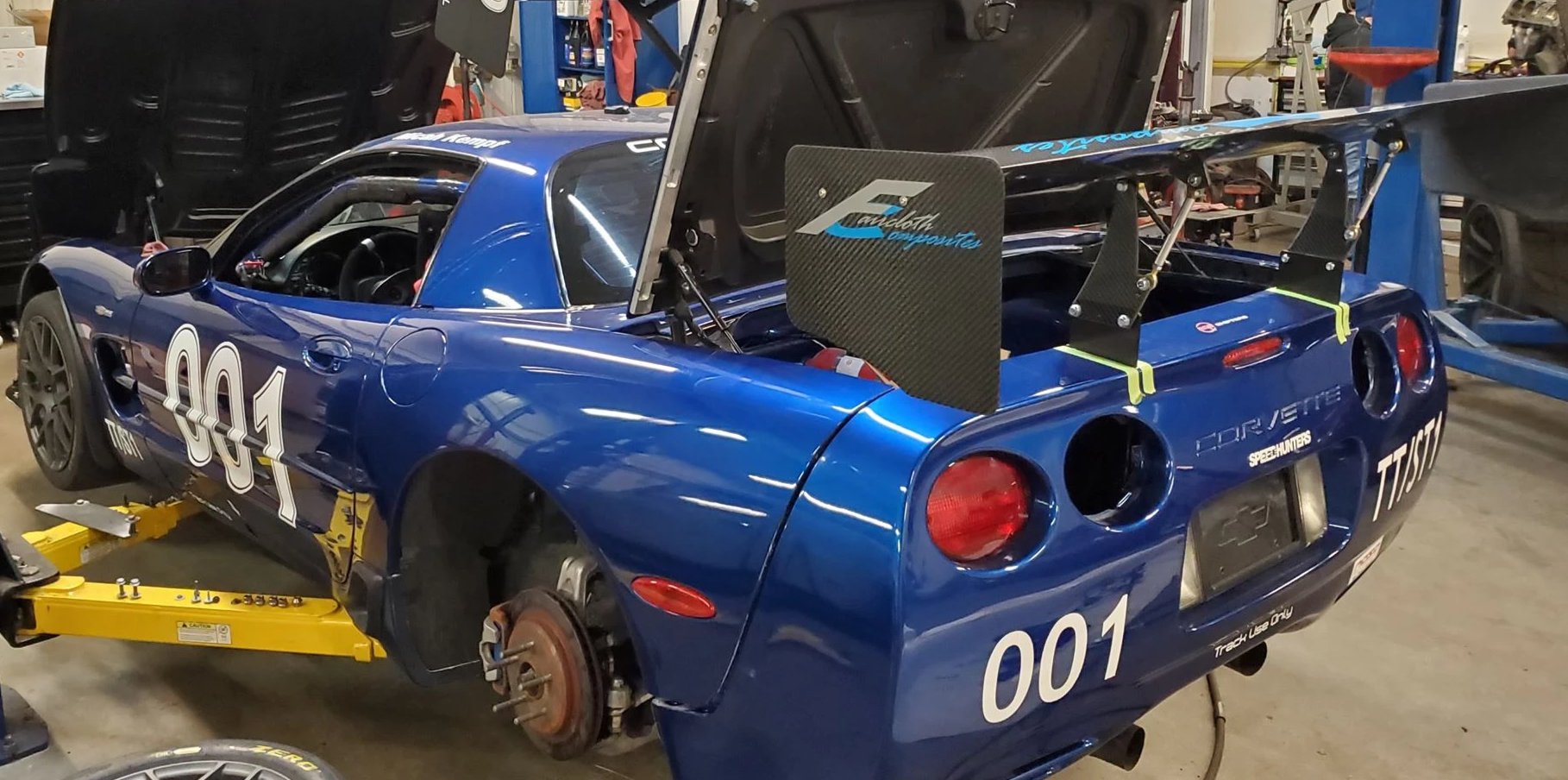

The mounts pictured are spaced so the uprights fit nicely between the tail lights of a C5 and C6 Corvette. No cutting tail light housings or losing the lights function.

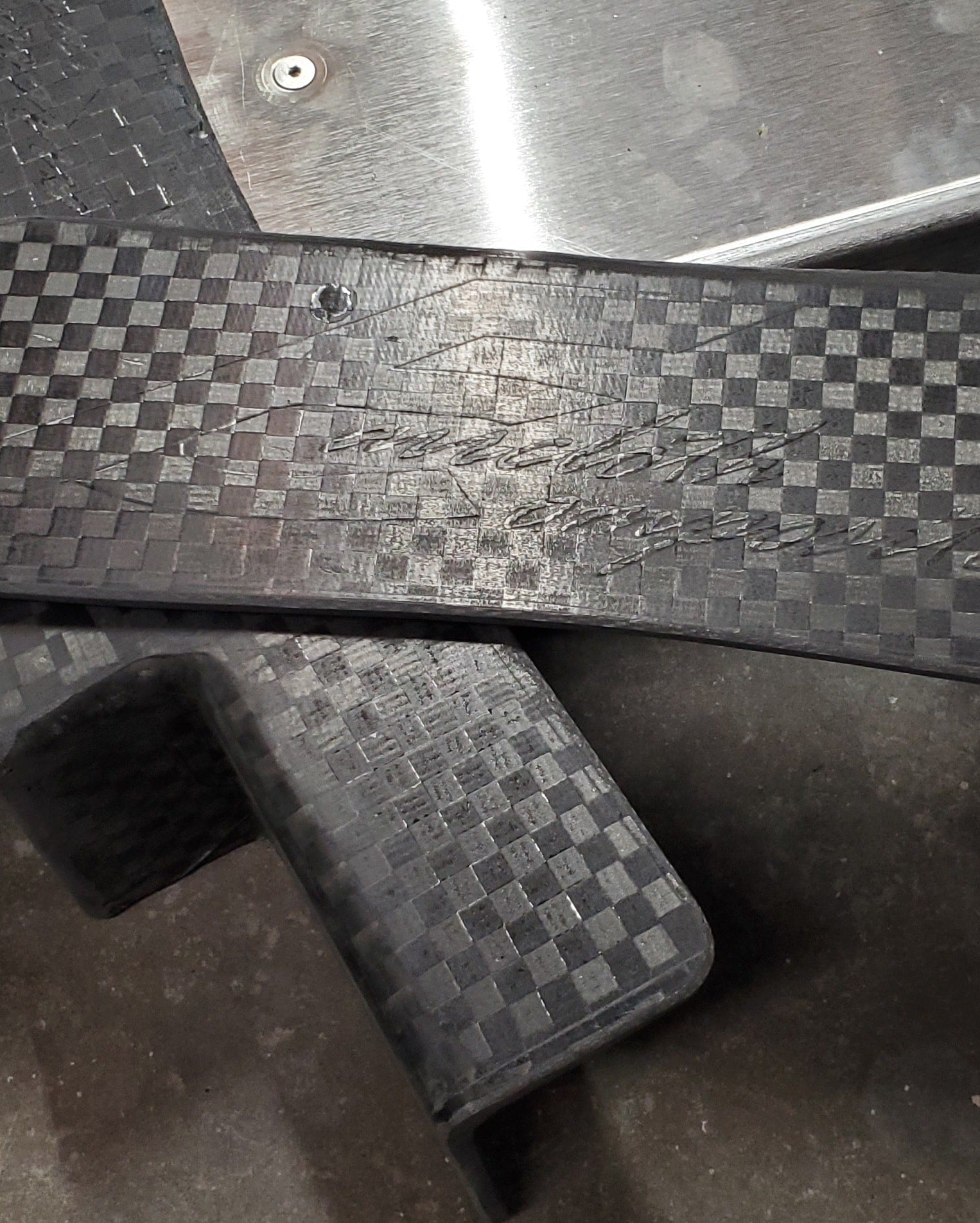

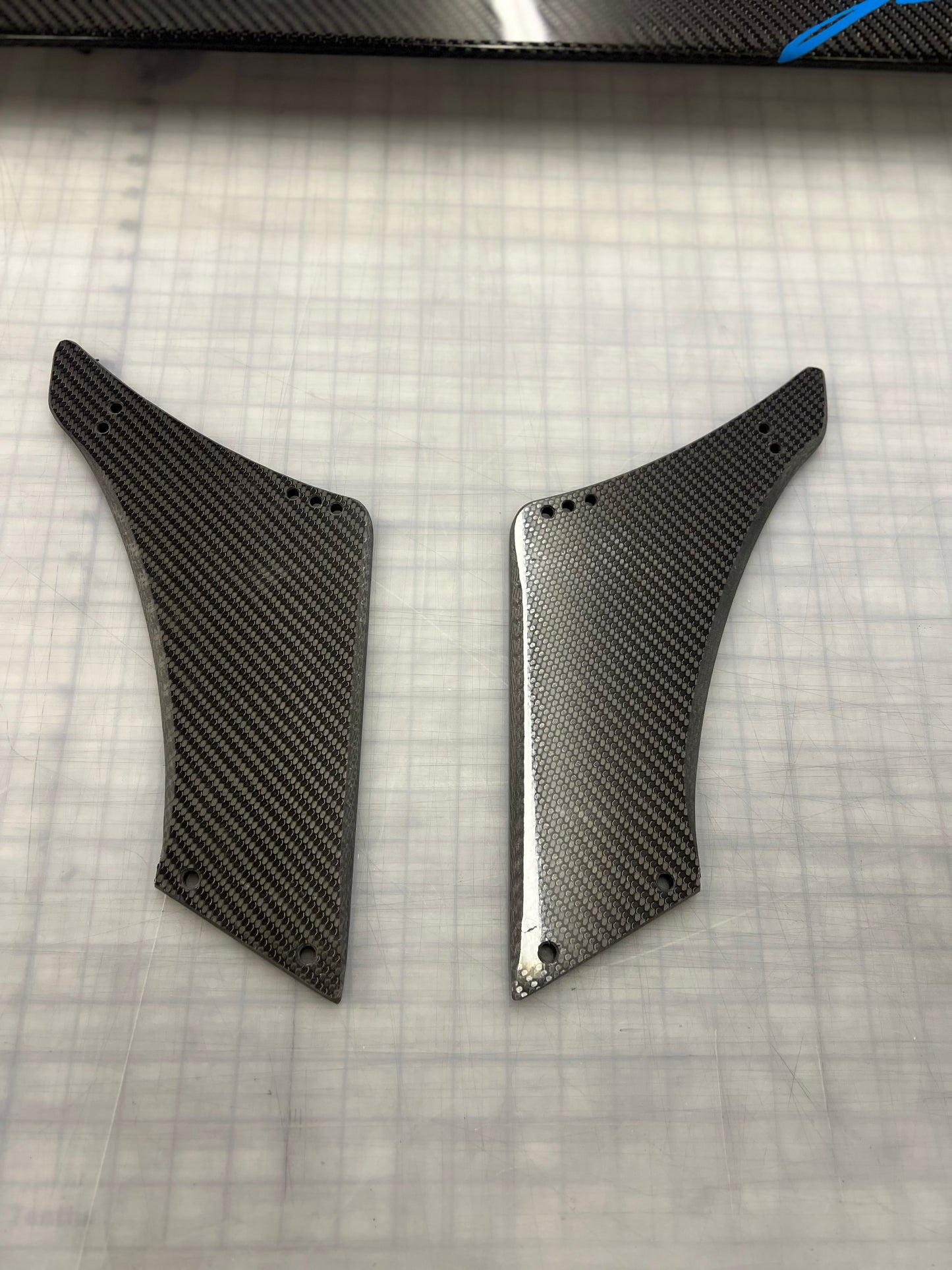

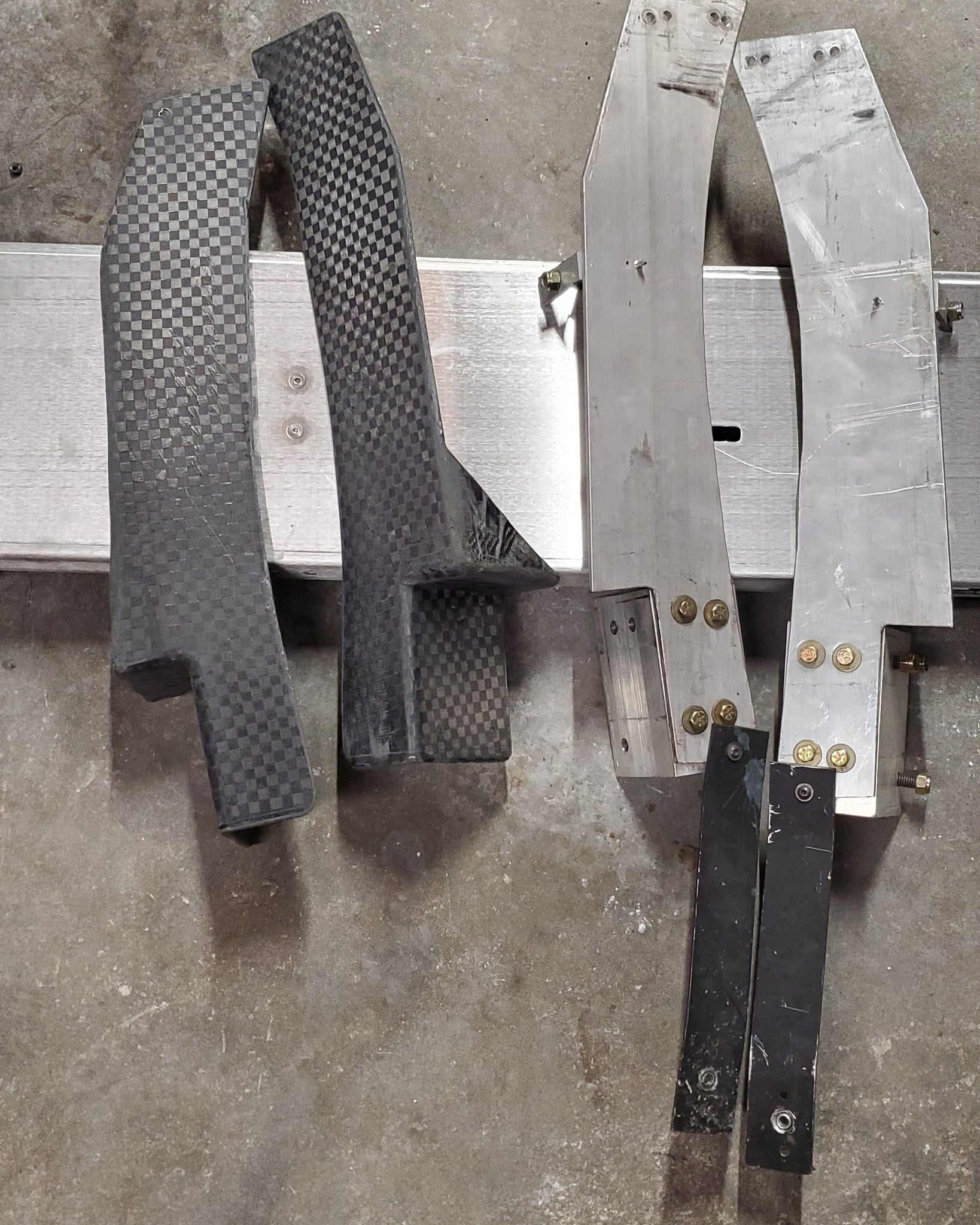

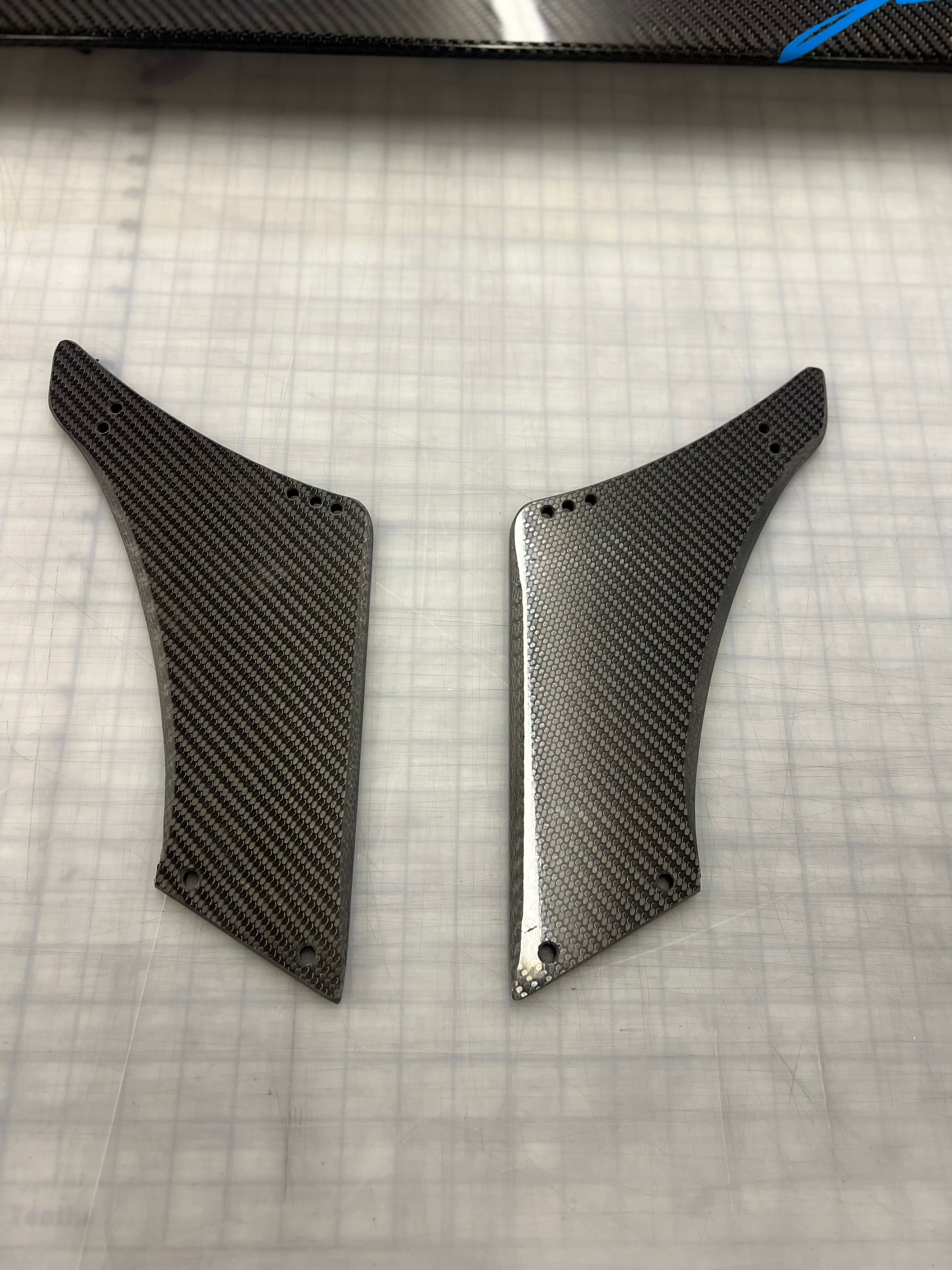

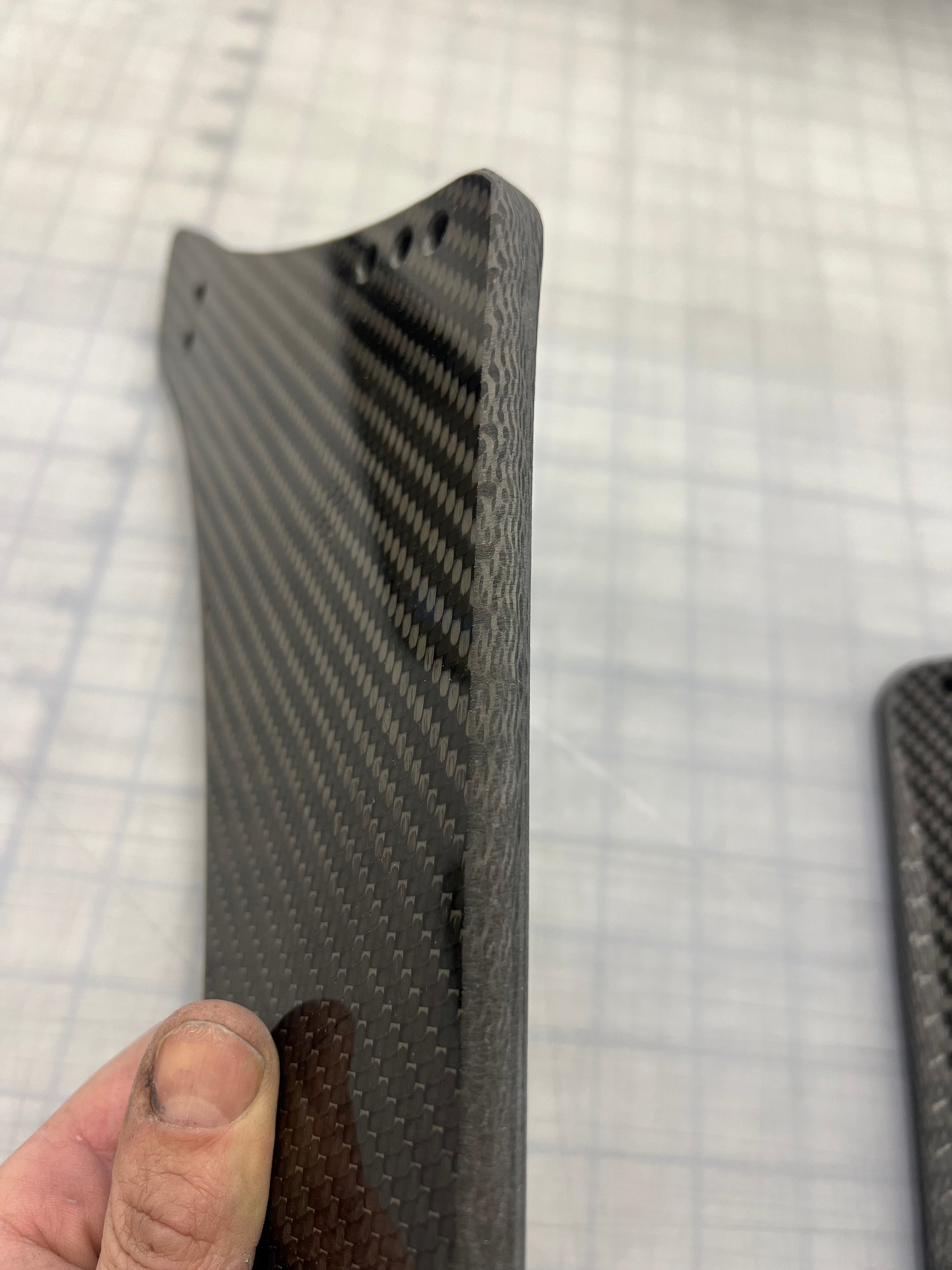

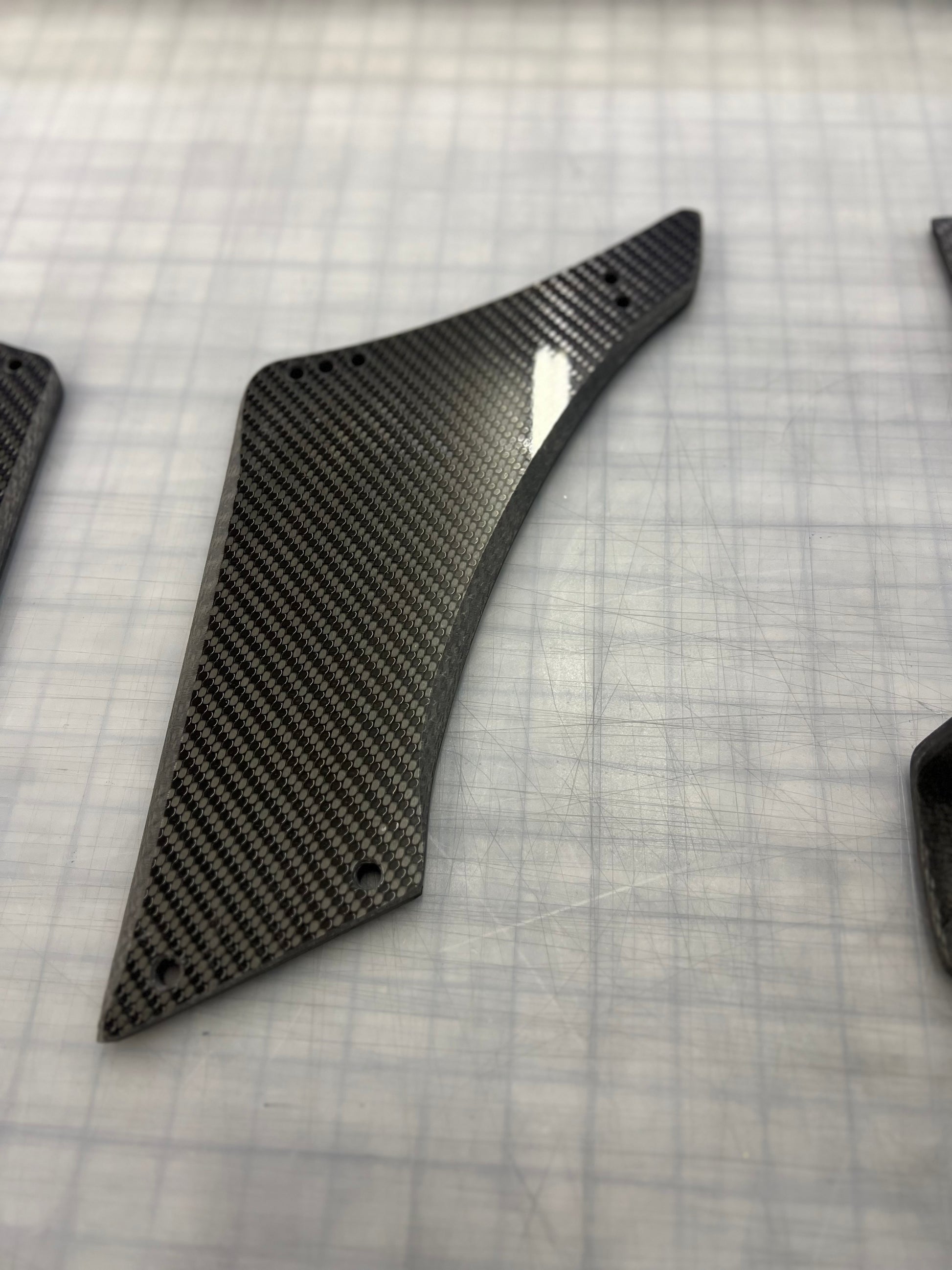

The lower uprights are made from solid carbon fiber and bolt directly to the bumper beam for a structural mount. The upper section is also from solid carbon fiber and CNC cut for a precise fit. The 2 part design allows overall height changes to be made without having to pull the bumper cover off every time. Just swap mounts and go.

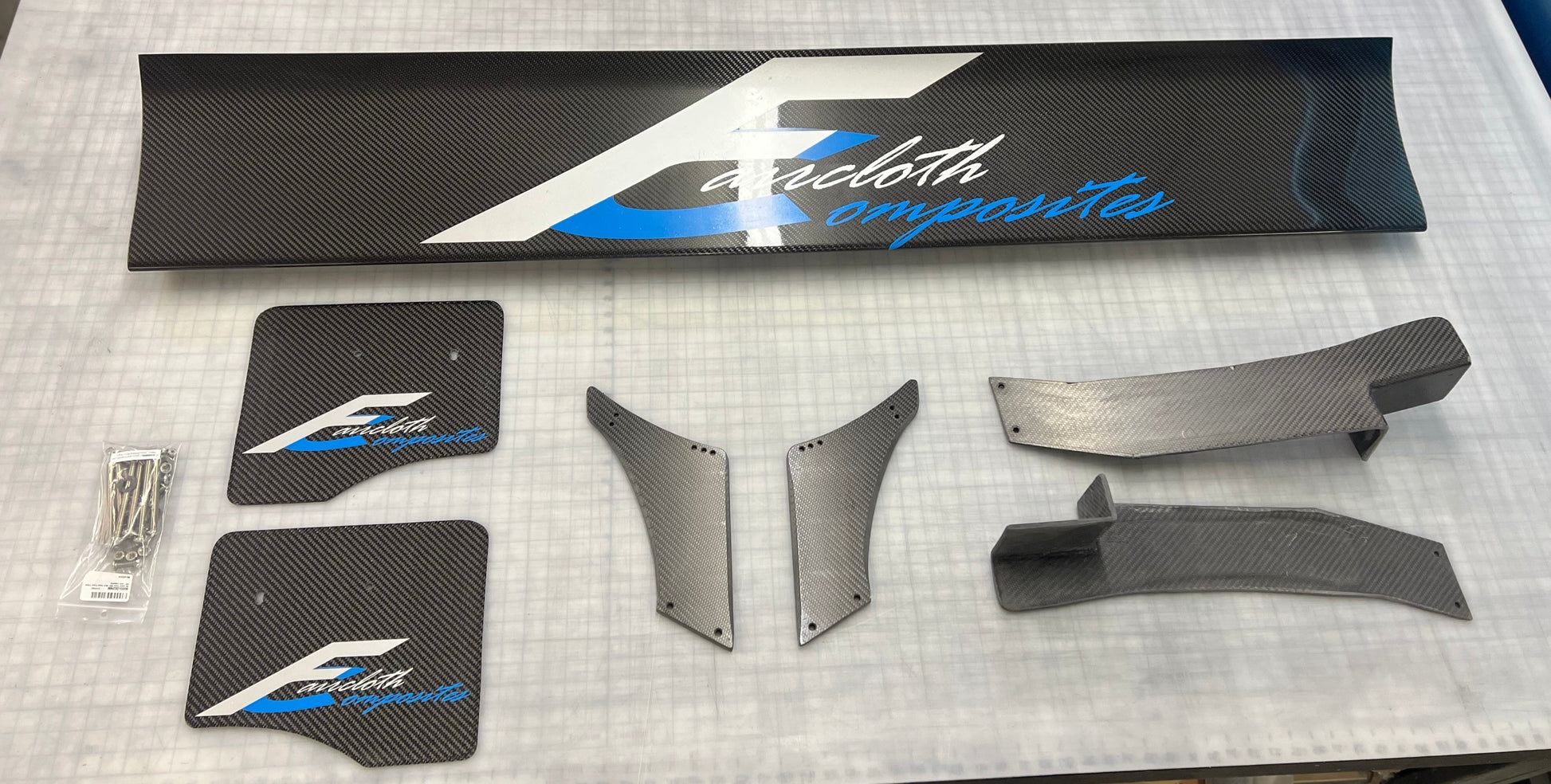

End plates and uprights included.
**Clear coat is recommended for carbon fiber parts exposed to uv and water.
