C6 Corvette Rear wing Crusher 14
C6 Corvette Rear wing Crusher 14
Couldn't load pickup availability
Our Crusher 14 wing is our biggest and highest down-force single element wing. It can be made any width up to 80" it was designed with dual-purpose cars in mind. It works exceptionally well at low speeds and high angles of attack for autocross events and can be dialed back to work well on road courses. The air even stays attached at 18* and above, which impressed the staff at the ARC wind tunnel.

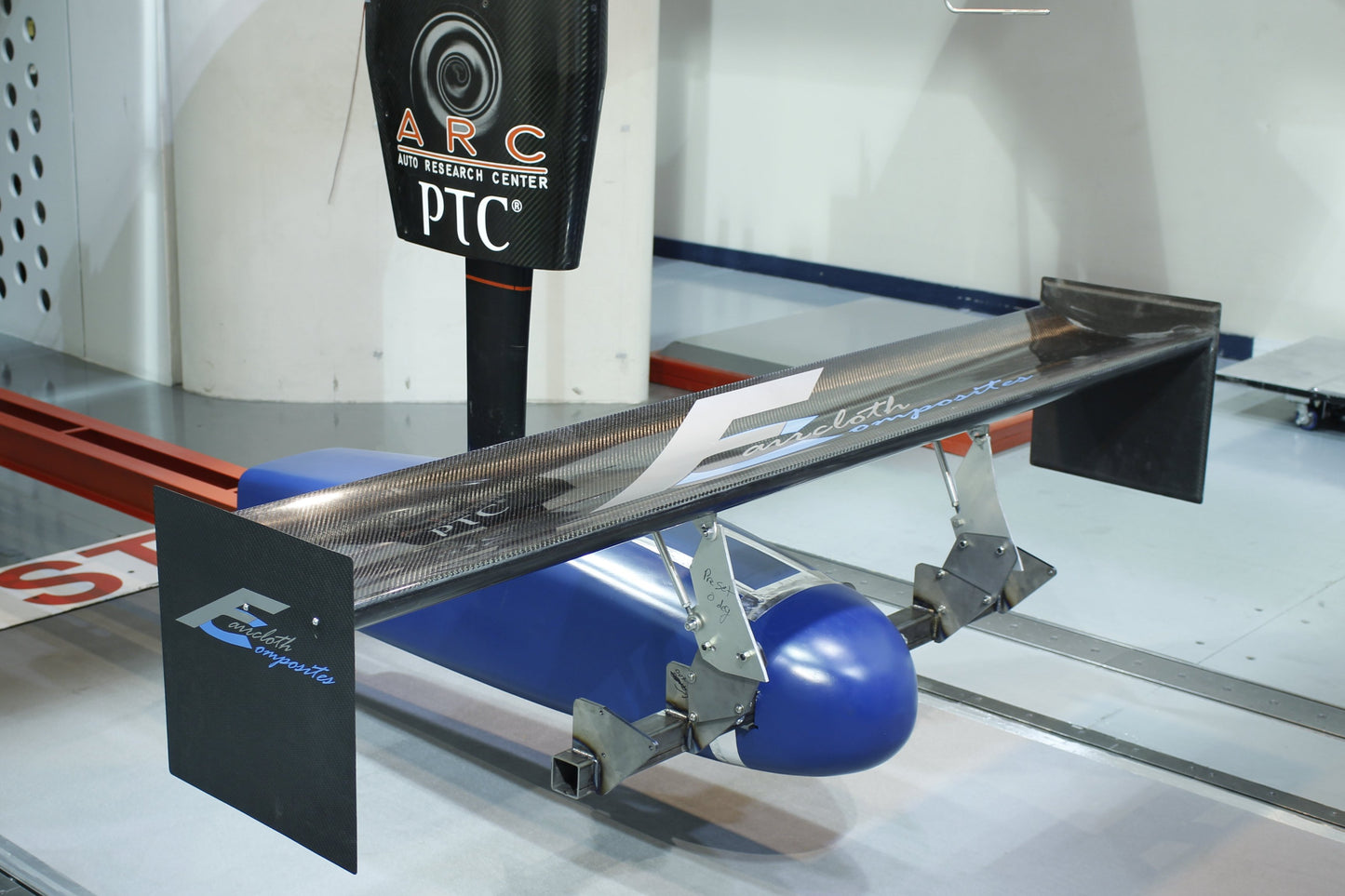

Pictured is a 78" bottom mount with large endplates in the wind tunnel as well as some of the 12" wing
Made with 100% carbon fiber.
All products are made to order, please contact us for current lead times. Credit card processing fees will not be refunded because of cancelation due to lead times.
Full carbon mounts, uprights, and full-size endplates are included standard.
This profile works exceptionally well at low speeds and high angles of attack for autocross events as well as on road courses where average speeds are 100 mph+.
Made with 100% carbon fiber on CNC molds that ensure a precise fit, unmatched strength, and stiffness as well as being extremely lightweight. You don't want to add weight to your car especially up high like a wing.
All of our wings are made with epoxy-infused, intermediate modulus carbon fiber @ 60%/40% (dry) fiber to resin content at 1/2 the cost of prepreg with all the stiffness and strength of a 100% carbon fiber wing, including mounts and uprights. No cheap Poly gel coat to peel and chip up.

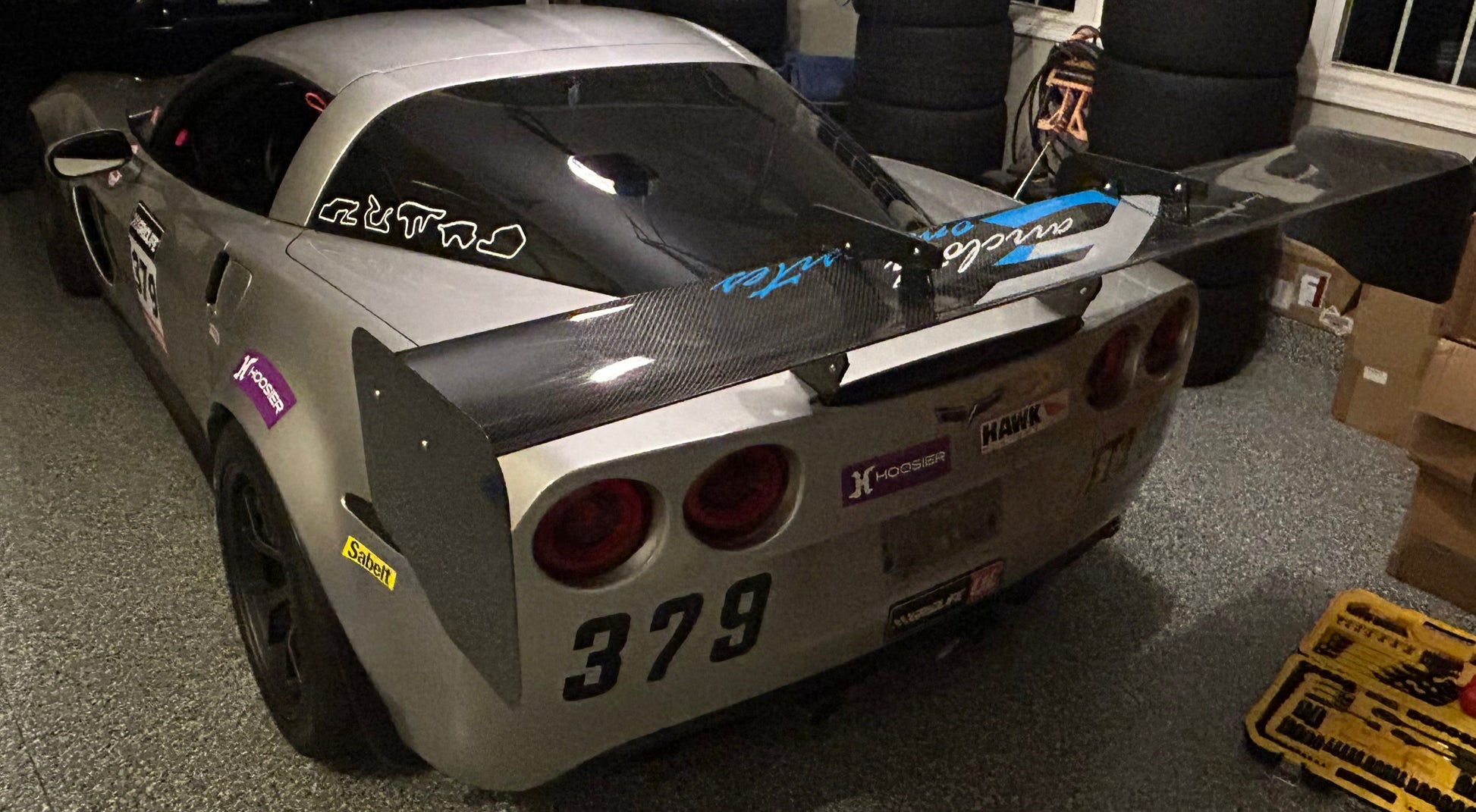

The mounts pictured are spaced so the uprights fit nicely between the tail lights of a C5 and C6 Corvette. No cutting tail light housings or losing the light's function.
The lower uprights are made from solid carbon fiber and bolt directly to the bumper beam for a structural mount. The upper section is also from solid carbon fiber and CNC cut for a precise fit. The 2 part design allows overall height changes to be made without having to pull the bumper cover off every time. Just swap mounts and go. The hatch remains functional with both top and bottom mounts.
End plates and uprights included.
**Clear coat is recommended for carbon fiber parts exposed to uv and water.
